Test integration

Before you begin


To successfully complete the tests in this document, you must:

Test Android SDK integration


The test consists of:

  1. Simulating an ad click and a conversion.
  2. Inspecting the conversion data of the install.

Simulate a conversion

Simulate a user clicking an ad and installing the app.

Step 1: Simulate ad click
Simulate an ad click via an attribution link. Structure the attribution link as follows:

https://app.appsflyer.com/<app_id>?pid=<media_source>
&advertising_id=<registered_device_gaid>

Where:

  • app_id is your AppsFlyer app ID.
  • pid is the media source to which the install should be attributed.
  • advertising_id is the registered device's GAID.

The advertising_id parameter is required to attribute via ID matching. If omitted, attribution will occur probabilistically.

For example, if your app ID is com.my.app, the attribution link might look like this:

https://app.appsflyer.com/com.my.app?pid=devtest&c=test1

or, with GAID:

https://app.appsflyer.com/com.my.app?pid=devtest&c=test1&advertising_id=********-****-****-****-************

👍

Tip

Often, tests using attribution links are performed more than once. That's why it's recommended to use one of the attribution parameters to "version" your tests–it makes it easier to understand which link triggered which conversion.

In the above example, the value of c is test1. In consecutive tests, increment the value of c to test2, test3, and so on.

Step 2: Install the app
Enable debug mode and install the app on a registered test device.

Step 3: Execute test
Proceed to inspect conversion data.

Inspect conversion data

After simulating a conversion, follow these steps to inspect the install's conversion data.

Step 1: Retrieve install UID
Once the app is installed, search the debug logs for conversions.appsflyer

Step 2: Inspect conversion data

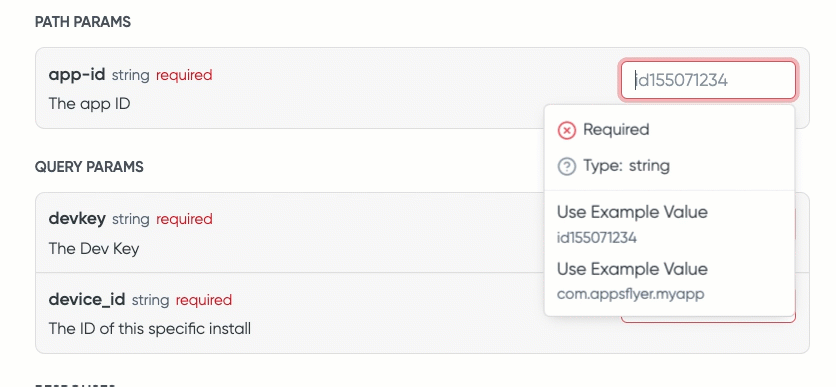

Go to the conversion data test API and fill in the required fields:

  1. app-id: Your app ID
  2. device_id: paste the value of uid from step 1.
  3. devkey - Application's devkey. Learn here how to get it.

Then, click Try it! to execute the test.

Expected result
A 200 response containing the install's conversion data (truncated for readability):

{
  ...
  "campaign": "test1",
  ...
  "media_source": "devtest",
  ...
  "af_status": "Non-organic"
  ...
}

📘

Note

It might take up to 30 minutes for the install to appear in the dashboard.

Troubleshooting the Android SDK integration


Install always attributed to organic

Scenario
You are testing attribution using attribution links. You've implemented the SDK conversion listener but the log always shows that the install is organic. In addition, no non-organic install is recorded in the dashboard.

Possible reasons

  1. Your dev key is incorrect - if you specify an incorrect dev key, the install cannot be attributed.
  2. The attribution link you are using is incorrect. See our guide on attribution links.
  3. Make sure that the device you are testing on is registered.
  4. A non-proper channel is defined in the manifest

Install not detected or attributed

Scenario
You are testing install attribution but the log doesn't show any data about the install such as type, first launch, etc.

Possible reasons

  1. Make sure that the start and init methods are called in the Application class.
  2. Make sure that the device you are testing on is registered.

I'm getting a 404 on install or event recording

Scenario
You are testing in-app events to see that they are attributed to the correct media source. However, the log shows response 404 for both the install and when you send in-app events. Neither the install nor the in-app events appear in the dashboard.

Possible reasons
A 404 response indicates that the app ID is incorrect. Make sure that the app ID in the applicationId parameter in the build.gradle file is the same as the one in your dashboard.

Revenue is not recorded properly

Scenario
You are testing in-app events with revenue. The events appear in the dashboard but revenue is not recorded

Possible reasons
The revenue parameter is not formatted correctly. Do NOT format the revenue value in any way. It should not contain comma separators, currency signs, or text. A revenue event should be similar to 1234.56, for example.

The log shows "AppsFlyer's SDK cannot send any event without providing devkey" when I test in-app events

Scenario
You are trying to see in-app events in the log. When you trigger events the log only shows "AppsFlyer's SDK cannot send any event without providing DevKey".

Possible reasons
You call the start method without passing the dev key as a parameter. Pass the dev key to the method.

The log shows "not sending data yet, waiting for dev key" in the log when I test in-app events

Scenario
You are trying to test in-app events in the log. When you trigger events the log only shows "Not sending data yet, waiting for dev key".

Possible reasons
You call the init and you pass the dev key as an empty string. Pass the dev key to the method.

I get response 400 when I test in-app events

Scenario
You are trying to test in-app events. When you trigger events you see an error 400 in the logs.

Possible reasons
This might indicate an issue with the dev key. Check that the dev key is the correct one. Also, make sure that the dev key contains only alphanumeric characters.

The log shows "warning: Google play services is missing"

Scenario
The logcat shows the warning message "WARNING: Google Play Services is missing".

Possible reasons
The app is missing the Google Play Services dependencies. This might prevent the SDK from collecting the GAID which might cause issues with attribution.

Add the following dependencies to the app-level build.gradle file:

implementation 'com.google.android.gms:play-services-base:15.0.1'
implementation 'com.google.android.gms:play-services-ads:15.0.1'

I get response 403 on install or event recording

Scenario
You are trying to test installs and other conversion events in the log. When you trigger these events, you see response 403 (forbidden) in the logs.

Possible reasons
This might be because you have the Zero package, which does not include attribution data; only data on clicks and impressions. To start receiving attribution data, learn more about the different AppsFlyer packages, and update as needed. You can also contact our customer engagement team at [email protected] if you have questions about our packages.

Creating an Android debug app


Optional
You can utilize Android Studio's build variants to configure an easy-to-use debug app for testing purposes.

All tests can be performed for both production and debug apps.

Step 1: Configure Gradle's debug build type
In your app-level build.gradle file, configure the debug build type and set applicationIdSuffix to the test app's name (in this case, .debug).

android {
    // ...
    buildTypes {
        // Prevents a signing error when building the production app
        release {
            signingConfig signingConfigs.debug
        }
        debug {
            applicationIdSuffix ".debug"
        }
    }
}

Step 2: Add a new app to AppsFlyer
Use the resulting package name as the app ID when adding the app to the AppsFlyer dashboard, or ask a team member with dashboard access to add it.

For example, if you have an app with the package name com.your.app and you use the Gradle configuration above, the test app's name will be com.your.app.debug. Pass this name as the app ID when adding the app to AppsFlyer.
